3B Scientific Helmholtz Coils - Pair Pair

This product is not eligible for any further discount

3B Scientific Helmholtz Coils - Pair Pair

B8A49475

Product code: B8A49475

Direct Delivery – up to 4 weeks.
-
+

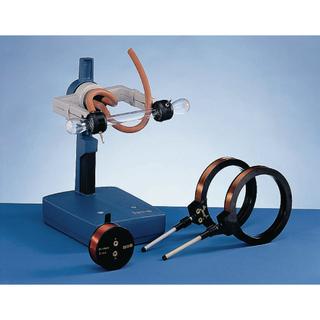

A pair of Helmholtz Coils for generating a uniform magnetic field perpendicular to the axis of the Teltron D series tubes. The Teltron Tube Holder D (B8A49463) allows the coils to be configured in the Helmholtz geometry or to produce magnetic fields aligned vertically, or coaxial, with respect to the tube axis. The maximum field strength generated by the coils (~ 10 mT) is approximately 300 times weaker than that produced by an MRI machine (~ 3T), which are known to be safe for use by people with medical implants such as pacemakers.

Technical Specifications:

  • Number of turns: 320
  • Max. continuous current: 1.0 A
  • Max. momentary current: 10 min @ 1.5 A; 3 min @ 2 A
  • Effective impedance: 6Ω
  • Max. field strength: approx. 10 mT
  • Connectors: 4mm sockets

Requires a 20V Power Supply (B8G85483) and 4mm Leads (B8R06545)

  • A-Level Physics - Atomic Physics

Further Information

Age Recommended from
16 Years
Brand
UK 3B Scientific
Connectors
4mm Sockets
Curriculum Link
Atomic Physics
Effective Impedance
6 Ohms
Key Stage Suitability
Key Stage 5
Maximum Continuous Current
1.0A
Maximum Field Strength
10mT
Maximum Momentary Current
10 min @ 1.5 A; 3 min @ 2 A
Number of Coils
320
Product Type
Helmholtz Coils

Documents

-
+
Direct Delivery – up to 4 weeks.

A pair of Helmholtz Coils for generating a uniform magnetic field perpendicular to the axis of the Teltron D series tubes. The Teltron Tube Holder D (B8A49463) allows the coils to be configured in the Helmholtz geometry or to produce magnetic fields aligned vertically, or coaxial, with respect to the tube axis. The maximum field strength generated by the coils (~ 10 mT) is approximately 300 times weaker than that produced by an MRI machine (~ 3T), which are known to be safe for use by people with medical implants such as pacemakers.

Technical Specifications:

  • Number of turns: 320
  • Max. continuous current: 1.0 A
  • Max. momentary current: 10 min @ 1.5 A; 3 min @ 2 A
  • Effective impedance: 6Ω
  • Max. field strength: approx. 10 mT
  • Connectors: 4mm sockets

Requires a 20V Power Supply (B8G85483) and 4mm Leads (B8R06545)

  • A-Level Physics - Atomic Physics

Further Information

Age Recommended from
16 Years
Brand
UK 3B Scientific
Connectors
4mm Sockets
Curriculum Link
Atomic Physics
Effective Impedance
6 Ohms
Key Stage Suitability
Key Stage 5
Maximum Continuous Current
1.0A
Maximum Field Strength
10mT
Maximum Momentary Current
10 min @ 1.5 A; 3 min @ 2 A
Number of Coils
320
Product Type
Helmholtz Coils

Documents
